Handheld Tungsten Electrode Grinder 220V Dustproof Portable Tungsten Sharpener for Electrode 1/8 1/16 3/32 inch 15 30 45 degree

Handheld Tungsten Electrode Grinder 220V Dustproof Portable Tungsten Sharpener for Electrode 1/8 1/16 3/32 inch 15 30 45 degree

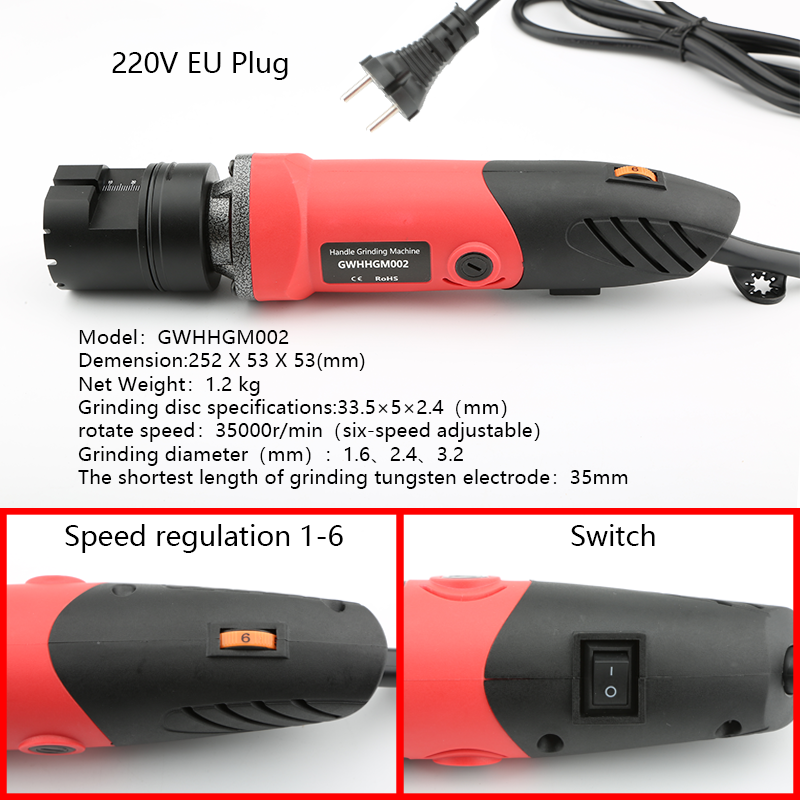

Main technical parameters of the equipment:

Model：GWHHGM002

Demension:252 X 53 X 53(m m)

Net Weight：1.2 kg

Grinding disc specifications:∅33.5×∅5×2.4（mm）

rotate speed：35000r/min（six-speed adjustable）

Grinding diameter（mm）：1.6、2.4、3.2

The shortest length of grinding tungsten electrode：35mm

Operating Instructions

Grinding angle range：15°30°45°

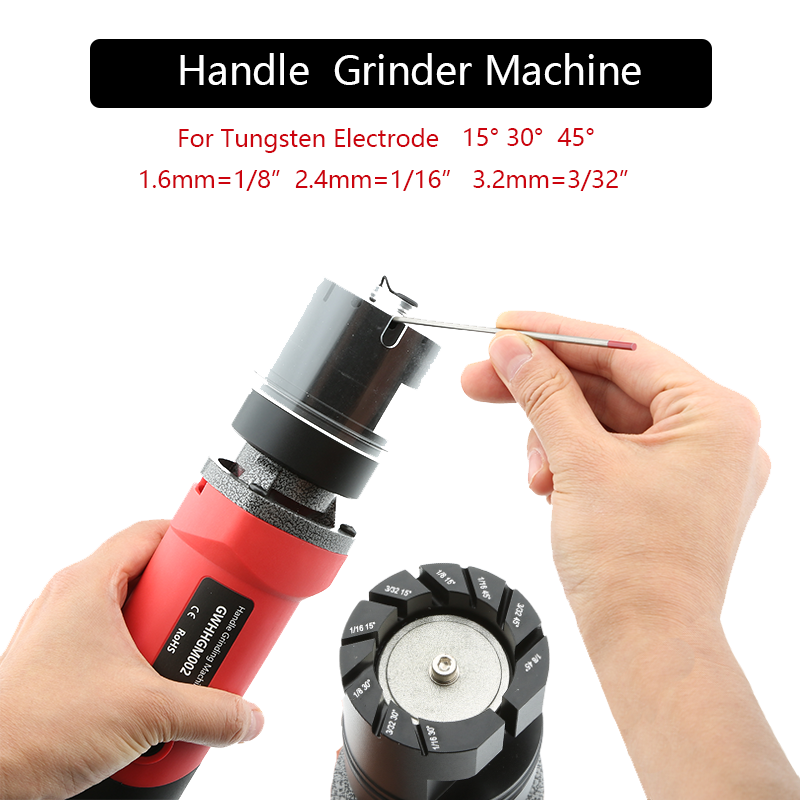

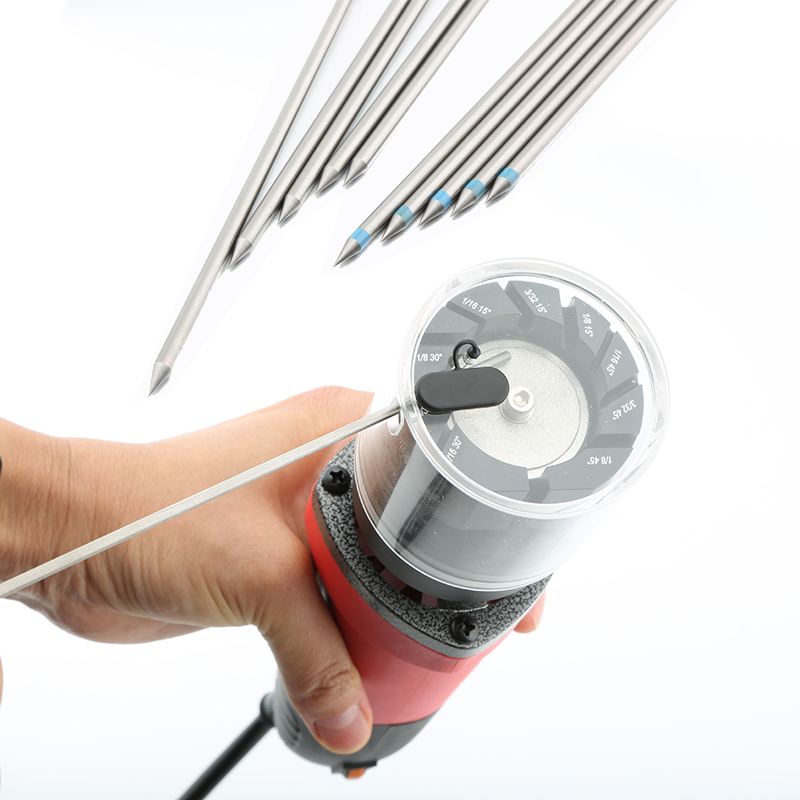

1) Tungsten electrode grinding method: Hand-held rotating tungsten electrode

through the slot on the circumference of the protective cover, insert it into the corresponding angle hole, and grind the tip;

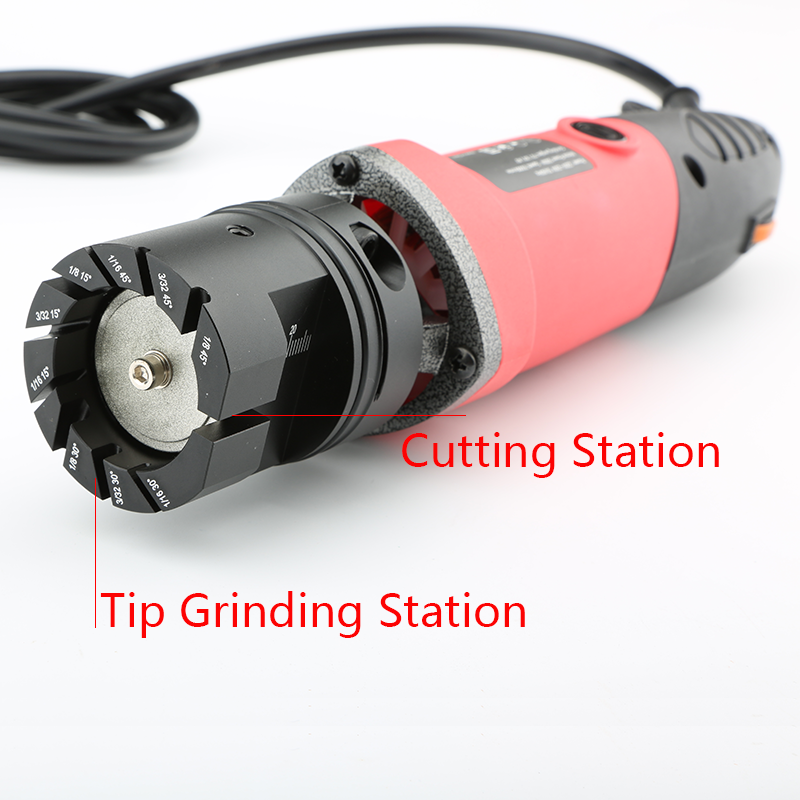

2) Tungsten electrode cutting method: Hold the tungsten electrode go through the slot on the end face of the protective cover, insert it and observe the cutting length, rotate it until it is broken;

3) Grinding method of the end face of the tungsten electrode: Hold tungsten electrode go through the slot on the end face of the protective cover and inserts it into the corresponding size hole for grinding;

4) Observe the degree of grinding, when achieving the effect, remove tungsten electrode;

remove tungsten electrode;

5) Turn off the power after grinding. placed in collections of the finished tungsten electrodes;according to the actual condition

finished tungsten electrodes;according to the actual condition

,clear-grinding machine;

6) Grinding speed adjustment: According to grinding tungsten electrode of different diameters, choose the grinding speed to

electrode of different diameters, choose the grinding speed to

achieve the best grinding quality.
