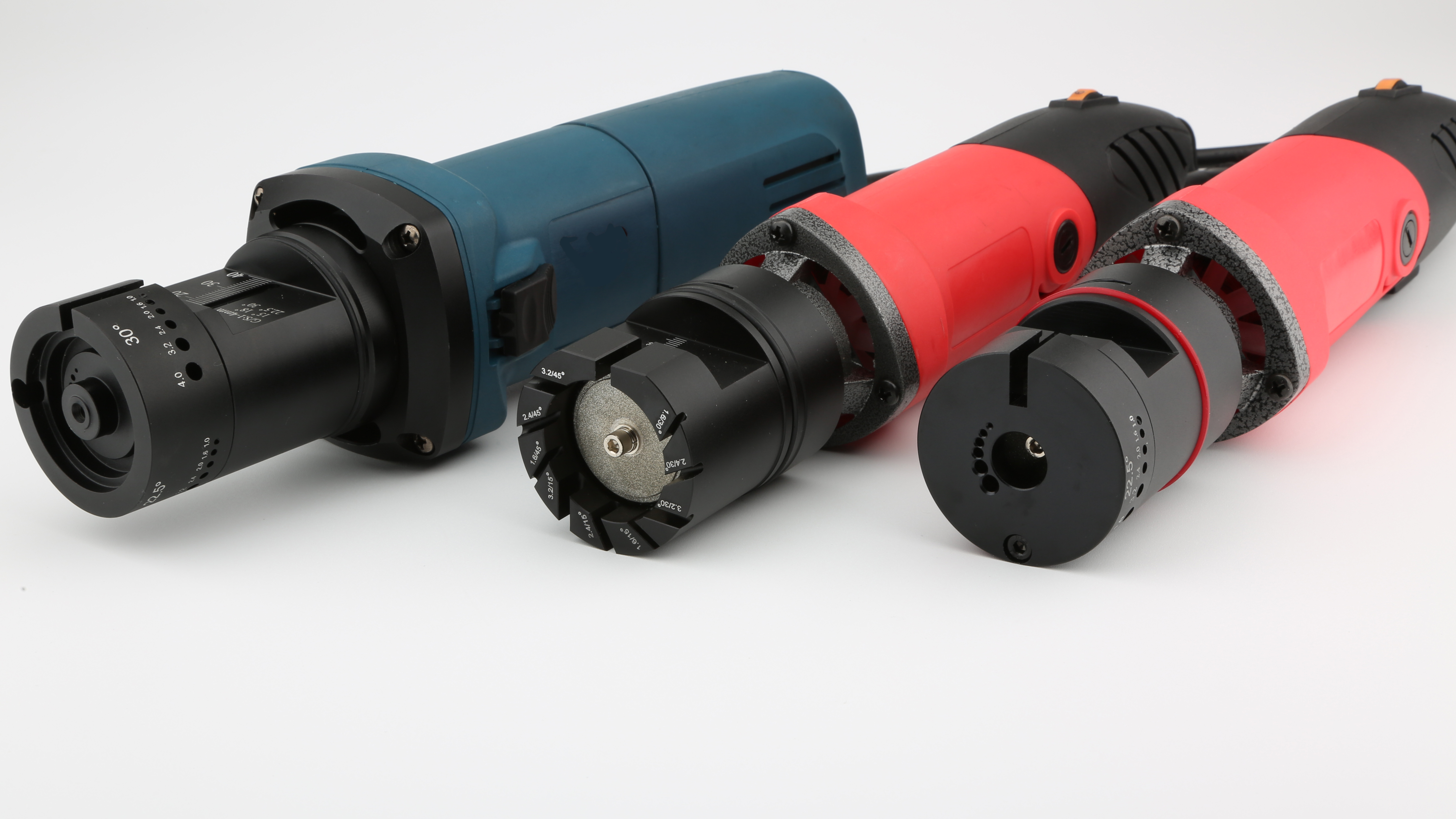

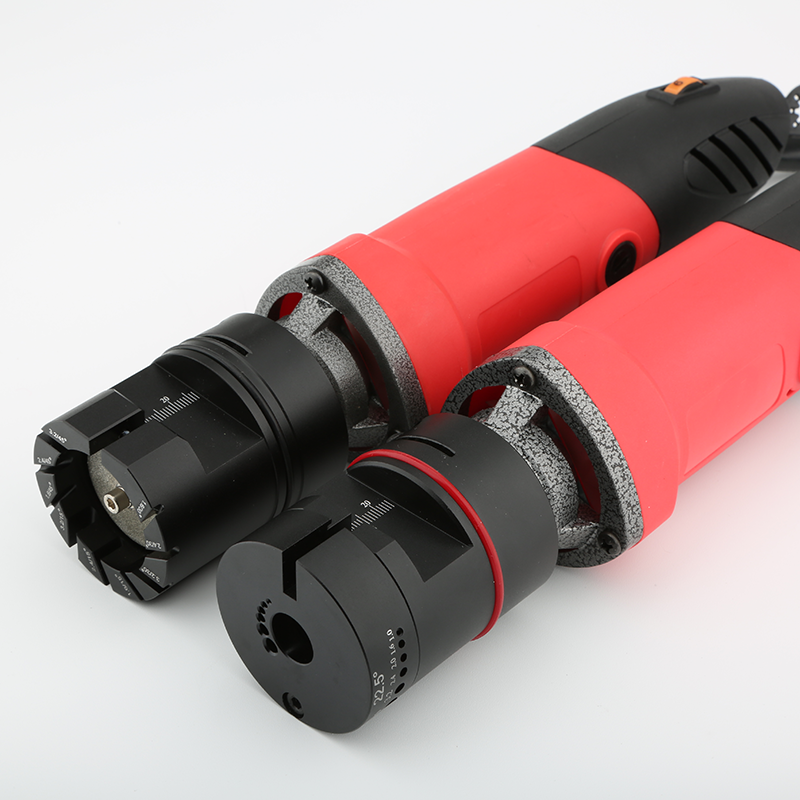

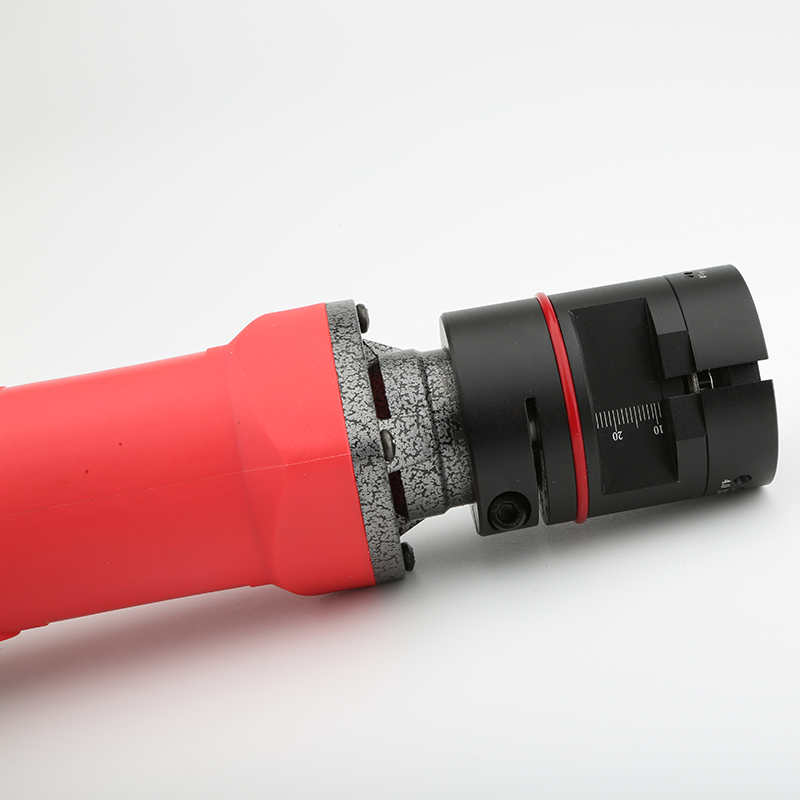

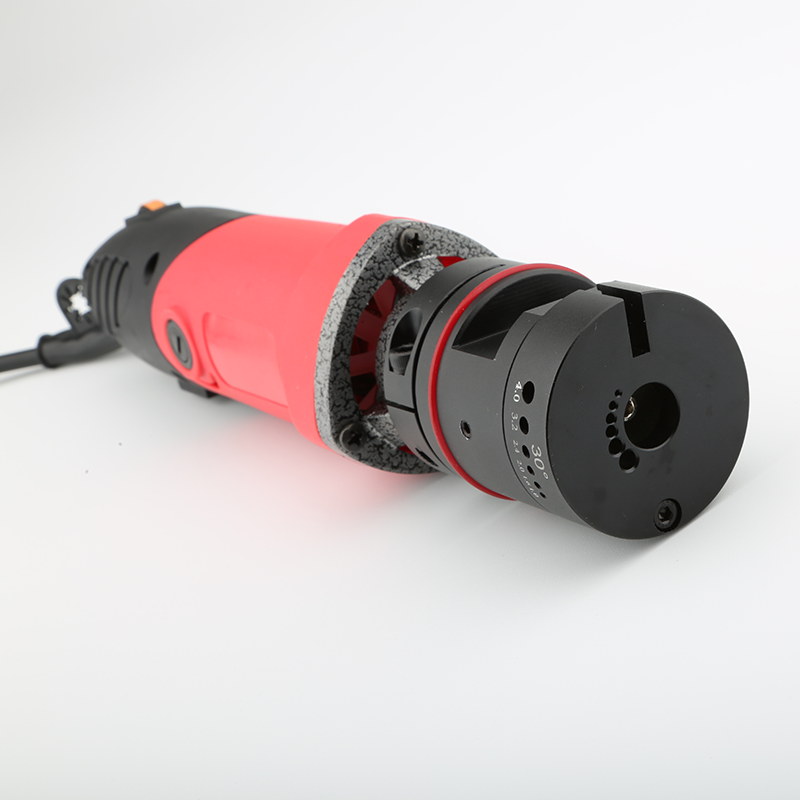

tungsten grinding machine Handheld Tungsten Electrode Sharpener for Electrode size 1.0-4.0 220V/110V

ungsten Grinding Machine Handheld Tungsten Electrode Sharpener for Electrode size 1.0-4.0 220V/110V

1.Hand-held Portable, exquisite and flexible;

2.Suitable for multiple grinding angles;

3.End face grinding, cut off at any length

4.Suitable for various electrode diameters;

5.The design conforms to ergonomics;

6.Can work for a long time;

7.Low cost, high output, energy saving and consumption reduction, low noise;

Main technical parameters of the tungsten sharpener:

Model：GWHHGM001

Host size:340 X 76 X 76(m m)

Net weight of bare metal：1.6kg

Grinding disc specifications:∅33.5×∅5×2.4（mm）

Maximum speed of grinding disc：25000r/min（six-speed adjustable）

Grinding diameter（mm）：1.0-4.0mm

The shortest length of grinding tungsten needle：30mm

Grinding angle:30° 36° 45° 60°

The tungsten sharpenerpower supply:220V/110V

tungsten sharpener Power： 750W

Model：GWHHGM002

Demension:252 X 53 X 53(m m)

Net Weight：1.2 kg

Grinding disc specifications:∅33.5×∅5×2.4（mm）

rotate speed：35000r/min（six-speed adjustable）

Grinding diameter（mm）：1.6、2.4、3.2

The shortest length of grinding tungsten electrode：35mm

Power：500W  110V

Model：GWHHGM003

Demension:252 X 53 X 53(m m)

Net Weight：1.2 kg

Grinding disc specifications:∅33.5×∅5×2.4（mm）

rotate speed：35000r/min（six-speed adjustable）

Grinding diameter（mm）：1.6、2.4、3.2

The shortest length of grinding tungsten electrode：35mm

Power：450W  220V
