WQTB Tungsten Electrode Sharpener holder Tungsten Sharpener holder

WQTB Tungsten Electrode Sharpener holder

Tungsten Sharpener

Patent No.: ZL 2022 2 3001879.0

The normal way tip grinding process of the tungsten electrode is generally carried out by the operator directly holding the tungsten needle by hand and using a grinding wheel to grind the tungsten electrode Grinding, the tungsten electrode is easy to be hot due to overheating during the grinding process, and the operation safety is low when the tungsten needle is short. In addition, holding the tungstenelectrode The grinding operation is inconvenient and the grinding process is unstable.

The advantages of this Sharpener holder:

1. It can effectively clamp the tungsten electrode, so as to prevent the operator from directly holding the tungsten needle by hand to burn his hands.

2. It can grind short tungsten electrode with high safety.

3. Improve the grinding efficiency and machining accuracy of tungsten needles.

4. The control process is stable, the operation is simple and convenient, and it is easy to control.

5. When grinding, the tungsten electrode, tungsten electrode clip and gun tail can be removed from the original welding torch and directly installed on the Sharpener holder After grinding and sharpening the tungsten  electrode, the whole set can be returned to the welding torch to improve work efficiency.

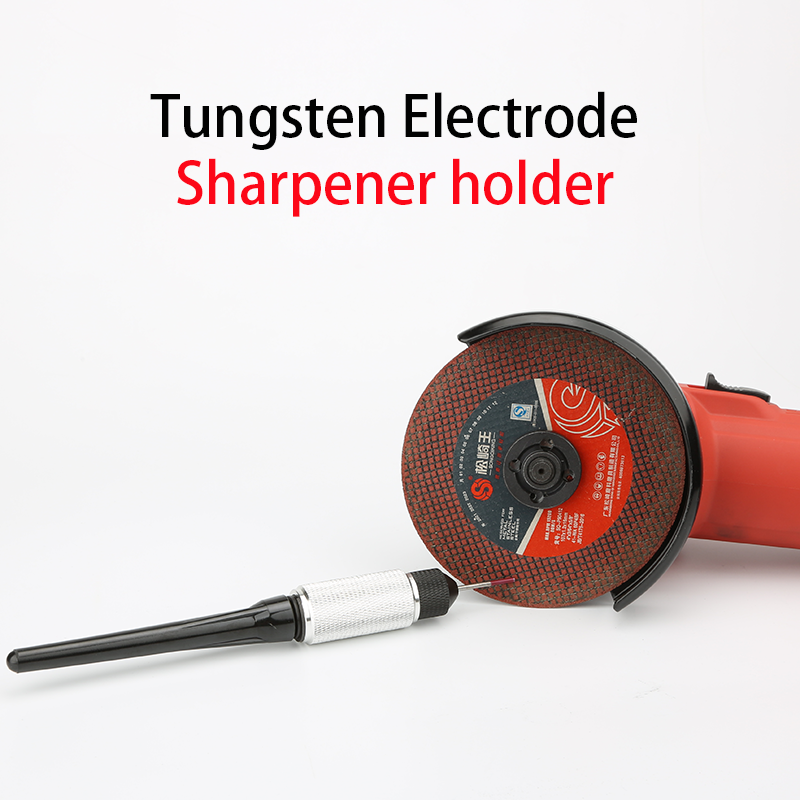

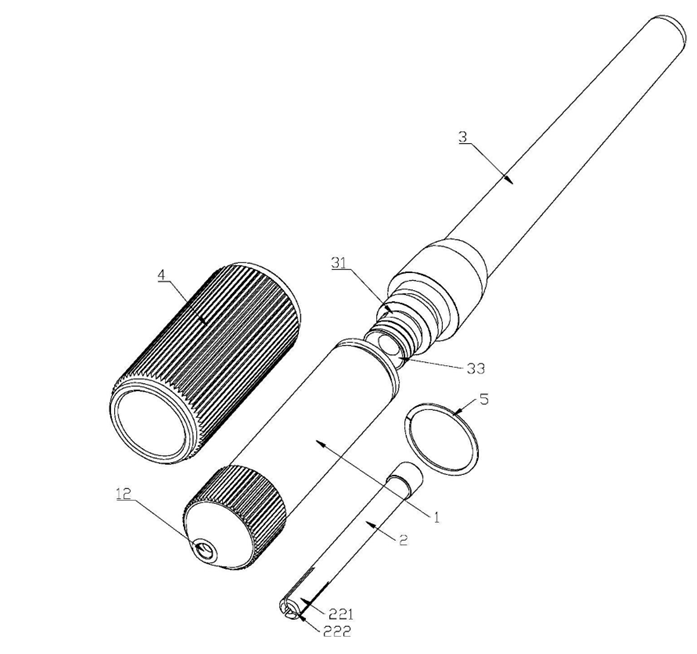

This product can be used with all kinds of grinding wheels. When using it, hold the No. 4 coat with one hand after clamping the tungsten  electrode, and use the other hand to rotate the No. 3 pen cap at a constant speed to complete the sharpening of the tungsten electrode.
